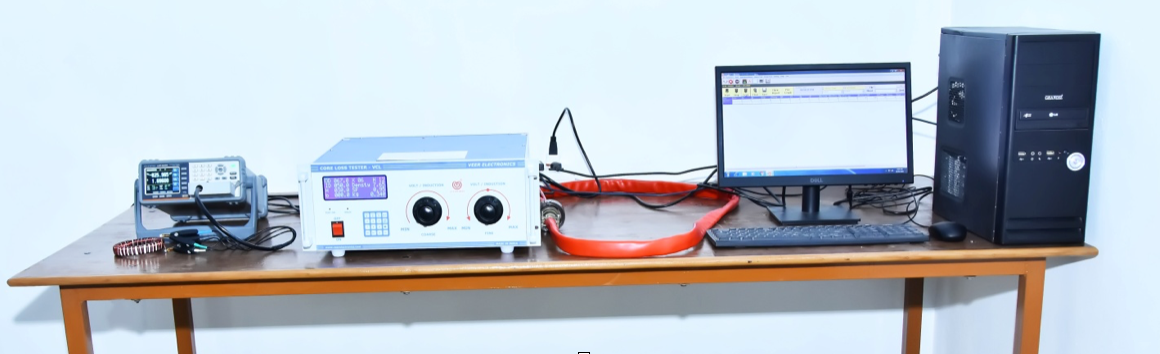

High Precision LCR tester & Core Loss tester

• Measures inductance (L), capacitance (C), and resistance (R) with exceptional accuracy and resolution.
• Essential for testing electronic components, materials, and circuits in various industries, including electronics manufacturing, research and development, and quality control.
• Offers a wide measurement range, high test frequencies, and advanced features like automatic component identification and data logging.

Typical Specifications:

• Frequency Range: 100 Hz to 10 MHz or higher
• Basic Accuracy: 0.05% to 0.1%
• Inductance Range: 100 nH to 100 H
• Capacitance Range: 10 pF to 100 mF
• Resistance Range: 0.1 Ω to 100 MΩ
• Test Signal Level: 10 mV to 5 V
• Features: Automatic component identification, data logging, pass/fail testing, temperature compensation, multi-function capabilities (e.g., impedance measurement)

• Core Loss Tester

  Description:

  • Measures magnetic core losses in materials used for transformers, inductors, and other electromagnetic devices.
  • Crucial for evaluating material performance and optimizing designs for efficiency and reduced energy consumption.
  • Typically employs either the Epstein frame or Single Sheet Tester (SST) method.

  Typical Specifications:

  • Frequency Range: 40 Hz to 1 kHz
  • Maximum Flux Density: 1.5 T to 2.5 T
  • Maximum Power: 100 W to 1 kW
  • Accuracy: 0.5% to 1%
  • Features: Temperature control, data logging, waveform analysis
